Most of us think about antennas and radios when it comes to protecting our stations, but what about computers? They’ve also become an indispensable part of on-the-air operations, especially for digital modes and remote operation. What’s protecting your USB ports?
The DX Engineering USB Isolator (DXE-ISO-USB) is designed to provide electrical isolation between a computer’s USB port and external devices such as radios, sensors, or other electronics used in ham radio setups and similar applications. The USB Isolator protects sensitive equipment from noise, ground loops, and voltage spikes that could potentially damage expensive hardware or cause operational instability.
Purpose
When USB devices are connected to a computer, they often share a common ground, which can lead to electrical interference. This can disrupt the operation of software-defined radios (SDRs), audio interfaces, or other peripheral equipment like rotators and antenna switches. The USB Isolator works by decoupling the electrical connection between the computer’s USB port and the external devices, ensuring that any unwanted electrical disturbances are isolated and do not affect the devices on the other side.
A surge on the input will be directed to the isolated input ground/shield, and a surge on the output will be directed to the isolated output ground/shield. The goal is to prevent the surge from reaching the next device.
Features & Design
As a passive device, the DXE-ISO-USB requires no power and features two ports: one USB A and one USB B. It’s bi-directional, allowing for installation in either direction. The maximum USB 2.0 speed is 480 Mb/s. This supports RS-232 COM port data speeds greater than the fastest 115,200 bps baud rate selection found in most USB-capable equipment. The isolator operates without requiring additional drivers, making it easy to install. It’s compatible with a wide range of operating systems, including Windows, Linux, and macOS.
One of its key features is the ability to safeguard sensitive electronics by blocking noise and electrical surges. Isolation is achieved using transformer-based technology, which ensures that there is no direct electrical connection between the two sides of the USB link. This provides cleaner data transmission and protects connected devices from damage caused by overvoltage or static electricity.

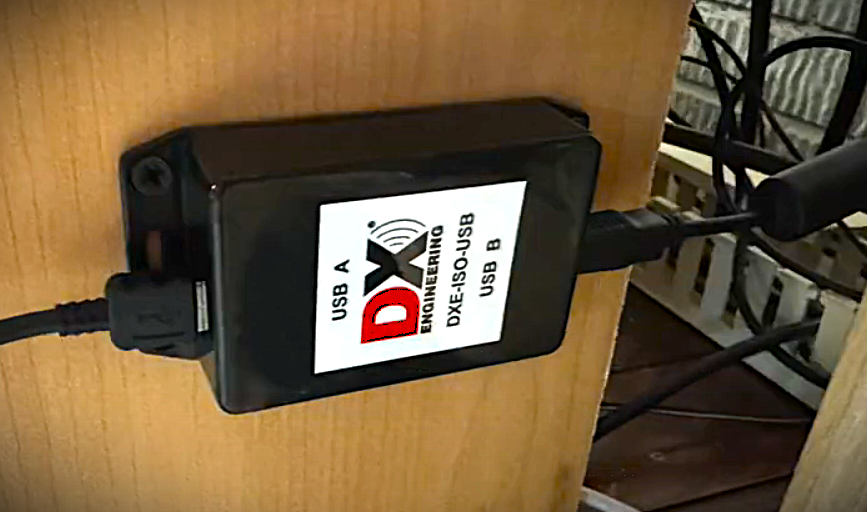

The DX Engineering USB Isolator is compact and portable, so it’s easily integrated into various setups without taking up much space. Whether you’re operating from a fixed station or setting up for portable use, the Isolator can be conveniently placed between your computer and USB device.
Ham Radio Applications
For amateur radio operators, the DX Engineering USB Isolator can be a crucial tool in preventing interference and ensuring reliable communication. Many modern radios, especially those used in software-defined radio setups, rely heavily on USB connections for computer communication. Without isolation, electrical noise and ground loops can lead to distorted signals or even damage the equipment.
The USB Isolator is also beneficial when connecting radios to operate digital modes such as PSK31, RTTY, or FT8, where clear and stable data transmission is essential. By isolating the computer’s USB port from the radio, operators can minimize the chance of noise or glitches that could interfere with signal transmission.
The device can also be helpful when setting up systems involving audio and data signals. When a USB audio interface is used in conjunction with a USB radio interface, the Isolator ensures that both data and audio signals are transmitted without introducing electrical issues that could compromise sound quality or signal integrity.
Got Isolation?
The DX Engineering USB Isolator is essential for anyone wanting to ensure clean, stable, and safe operation of their USB-connected devices, particularly in environments susceptible to electrical interference. Its ability to protect against noise, ground loops, and voltage surges makes it an indispensable piece of equipment for amateur radio operators and anyone working with sensitive USB devices. With its ease of use, compatibility with a wide range of systems, and compact design, the DXE-ISO-USB is both practical and reliable for safeguarding equipment.
